Door & Hinge Adjustments

A successful and beautiful installation requires proper door and hinge adjustments. These fine-tuning adjustments are the responsibility of the installer and all adjustments can be performed with a Phillips head screwdriver.
*Be sure to adjust doors BEFORE drilling for handles or knobs

Left & Right Door Adjustment

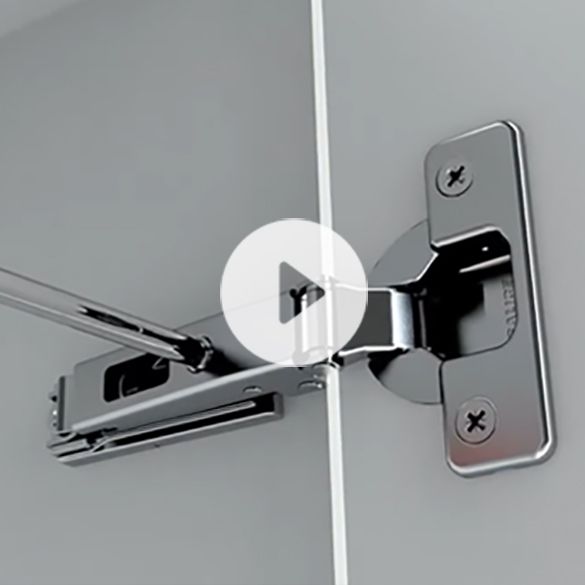

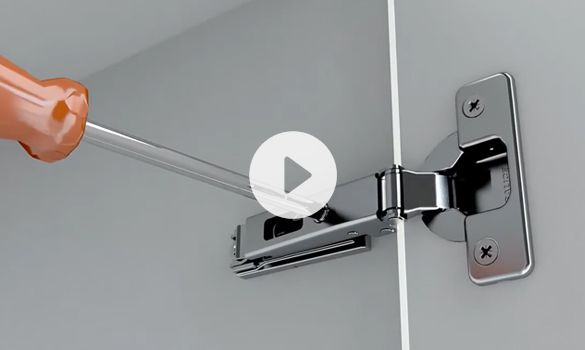

Turn this screw for horizontal door adjustments (left or right). Using this to align the reveals, or gaps, between adjacent doors and drawers. Proper door alignment usually requires adjusting upper and lower hinges.

Watch

Up & Down Door Adjustment

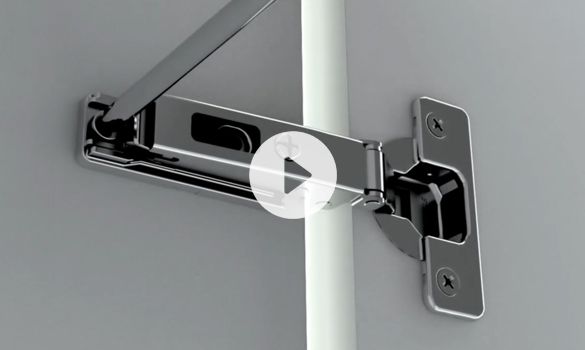

Turn this screw to move the door up or down with the integrated cam system. Proper door alignment usually requires adjusting upper and lower hinges.

Watch

Up & Down Adjustments

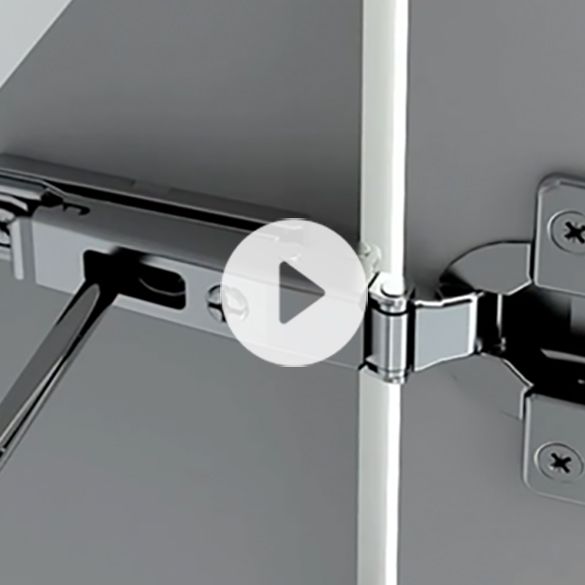

Turn this screw to move the door up or down with the integrated cam system. Proper door alignment usually requires adjusting upper and lower hinges.

Watch

In & Out Door Adjustments

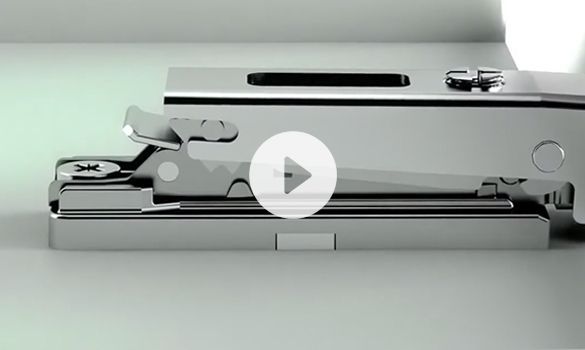

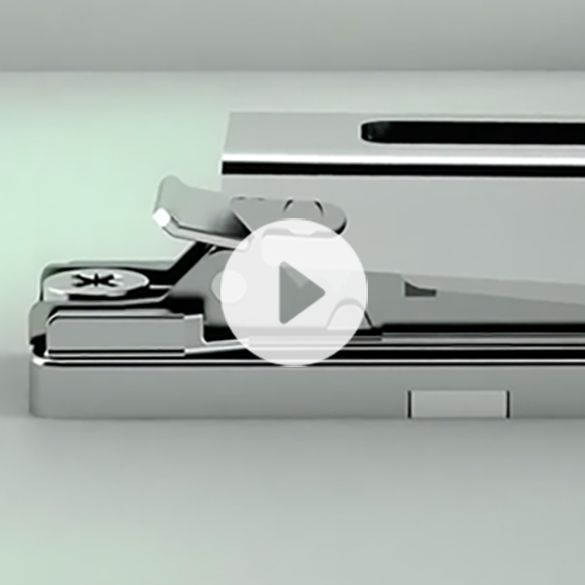

Turning this screw at the back of the hinge moves the door in or out to align with adjacent doors.

Watch

Remove & Replace Door

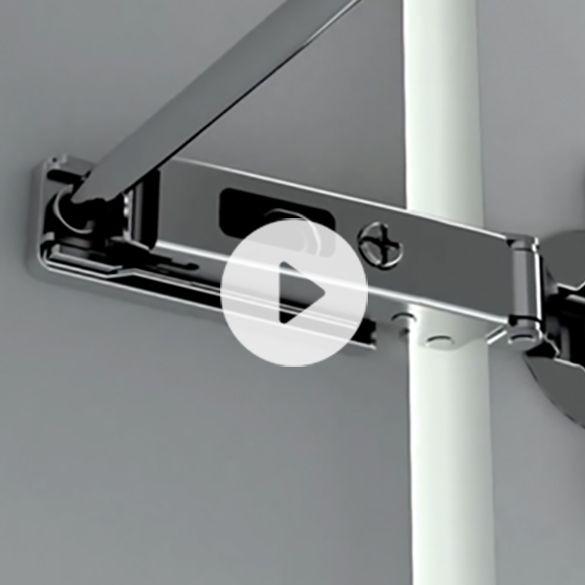

Remove the door by pressing the quick release mechanism/button located at the back of each hinge. Replace the door by aligning the hinge over the hinge plate and press firmly until the hinge locks into place.
NOTE: This process does not interfere with the hinge adjustments

Watch

Remove & Replace Door

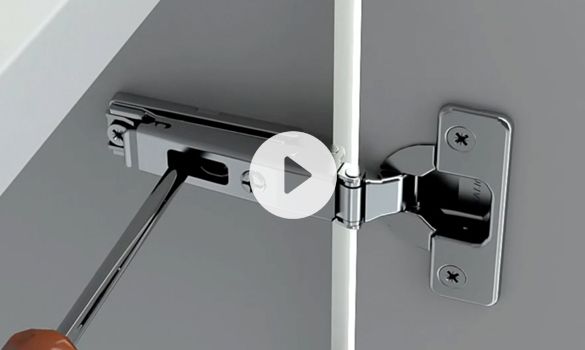

Remove the door by pressing the quick release mechanism/button located at the back of each hinge. Replace the door by aligning the hinge over the hinge plate and press firmly until the hinge locks into place.
NOTE: This process does not interfere with the hinge adjustments
